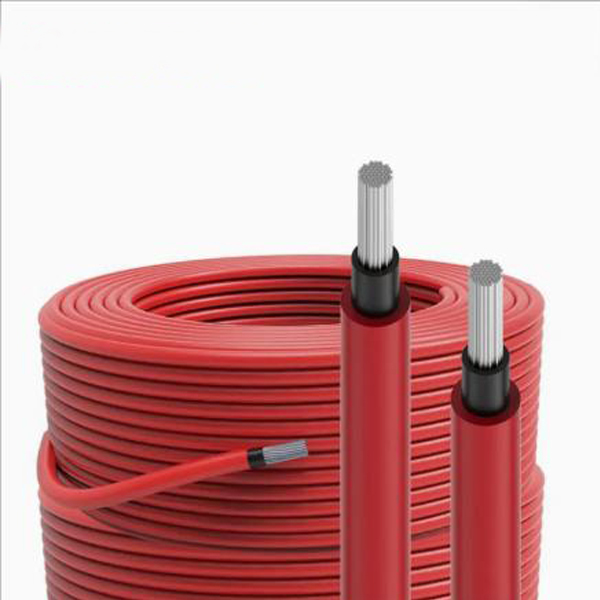

4mm 6mm 10mm Solar PV Panel H1z2z2-K DC Power Wire Photovoltaic Cable
Introduction
Engineered for relentless sun exposure, our UV-Shielded PV Cables deliver uncompromised performance in deserts, coastal zones, and high-altitude installations. The proprietary triple-extruded insulation combines electron-beam cross-linking with carbon black additives, offering 3x greater UV resistance than industry standards. This ensures decades of service without brittleness, cracking, or insulation breakdown – critical for reducing O&M costs in utility-scale projects.
PV Solar cable specification:
| Type | Cross section | Strand design | Conductor diameter | Conductor resistance | Outer diameter | Rated voltage | Rated current | Weight |
| mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A | Kg/km |
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.9 | 4.5 | 1000/1800 | 20 | 40.69 |
| PV-1*2.5 mm² | 2.5 | 48x ø 0.25 | 2.0 | 8.06 | 5.3 | 1000/1800 | 30 | 54.64 |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 4.97 | 6.2 | 1000/1800 | 50 | 75.36 |
| PV-1*6.0 mm² | 6.0 | 81x ø 0.3 | 3.3 | 3.52 | 7.2 | 1000/1800 | 70 | 107.17 |
| PV-1*10.0 mm² | 10.0 | 200x ø 0.25 | 4.4 | 2.12 | 8.3 | 1000/1800 | 95 | 161.60 |
| PV-1*16 mm² | 16.0 | 224x ø 0.3 | 5.2 | 1.95 | 9.5 | 1000/1800 | 140 | 225.94 |
| PV-1*25 mm² | 25.0 | 196x ø 0.40 | 7.40 | 0.795 | 12.52 | 1000/1800 | | 348.51 |
| PV-1*35 mm² | 35.0 | 276x ø 0.40 | 9.00 | 0.565 | 14.44 | 1000/1800 | | 470.98
|
| Type | Cross section | Strand design | Conductor diameter | Conductor resistance | Outer diameter | Rated voltage | Rated current |
| mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A |
| PV-2*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.9 | 4.5 | 1000/1800 | 20 |
| PV-2*2.5 mm² | 2.5 | 48x ø 0.25 | 2.0 | 8.06 | 5.3 | 1000/1800 | 30 |
| PV-2*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 4.97 | 6.2 | 1000/1800 | 50 |
| PV-2*6.0 mm² | 6.0 | 81x ø 0.3 | 3.3 | 3.52 | 7.2 | 1000/1800 | 70 |
| PV-2*10.0 mm² | 10.0 | 200x ø 0.25 | 4.4 | 2.12 | 8.3 | 1000/1800 | 95 |
| PV-2*16 mm² | 16.0 | 224x ø 0.3 | 5.2 | 1.95 | 9.5 | 1000/1800 | 140
|
Advantages
-
Extended UV Lifespan: Exceeds 250 kLy UV exposure tests (IEC 62788-2).
-
Hydrolysis Resistance: Prevents moisture ingress in tropical/coastal climates.
-
Abrasion Protection: Robust outer jacket withstands mechanical stress during installation.
-
Color Stability: Jet-black outer layer maintains identification clarity for 25+ years.
-
RoHS Compliance: Free of lead, cadmium, and heavy metals.
Packaging : 100 meters/roll. Or packed on wooden drum, as per customer’s requirements.
HS Code: 8544492100
Characteristics
Ambient temperature: 60℃
Max. conductor working temperature : 120℃
Rated temperature: -40~90℃
Rated Rating: DC:1/1.8KV AC: 0.6/1KV
Rated Current: 33~57A 41~98A
Weathering Resistance: Sun Resistant
Application
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
-
Desert solar farms in MENA regions.
-
Coastal power plants with salt spray exposure.
-
Alpine solar installations with high UV index.
-
Agrovoltaic systems in farmlands.
-
Remote off-grid solar stations.
Q & A:
1. Rated voltage
A.C. 0.6/1KV
D.C. 1500V
Max. voltage D.C. 1.8kv
2. Permissible ambient temperature
-40°C up to +90°C
3. Max. conductor temperature
at normal operation 120 °C
at short/circuit operation 200 °C
4. The min. Bending radius
4XD ( Note: D is for overall diameter of cable)
5. The min. thermal life
25 years
6. Free halogen, flame retardant
7. Weathering resistant, UV resistant, ozone erosion resistant, anti-penetration
Why Choose Us
Anti-static compounds prevent dust accumulation
Memory-free coiling characteristics eliminate kinking
High-visibility coloration enhances worksite safety
Abrasion-resistant surfaces withstand concrete drag
Power your solar projects with unbreakable reliability! Request a FREE sample of our TÜV-certified PV cables today and experience superior performance firsthand.
